Safety switch installation

Updated

Applies to Harvia SFE safety switches

This article guides you through the wiring and use of a safety switch device.

You can find the instructions for the door switch here.

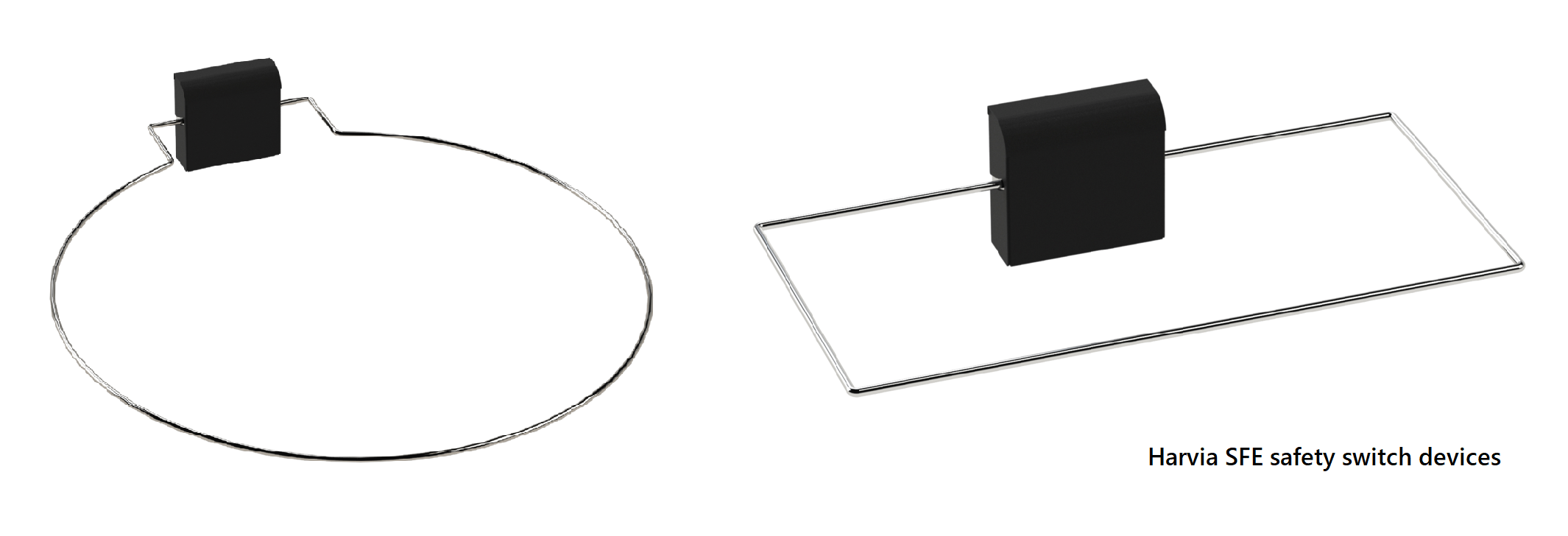

SFE ENG.png

Wiring

  • The safety switch may only be installed by a qualified electrician.
  • This instruction only shows how to connect the safety device to the circuit board of the power unit or heater. See the SFE product manual for other installation instructions.

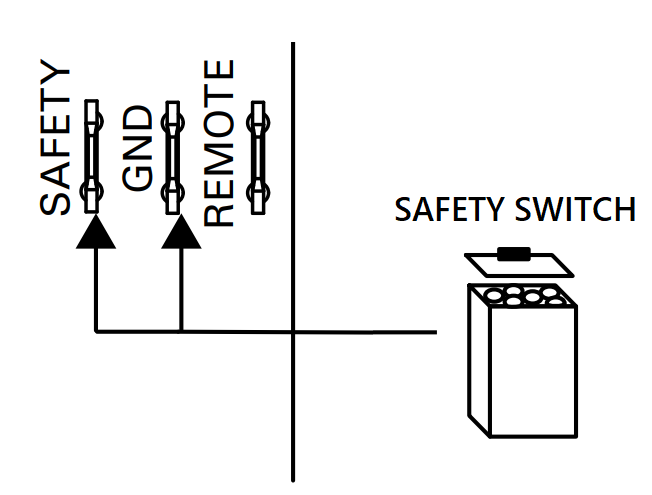

SFE eng 2.PNG

  • The safety switch is connected to the SAFETY and GND terminals on the circuit board, terminals X15 and X16.

Control panel settings

Xenio control panels

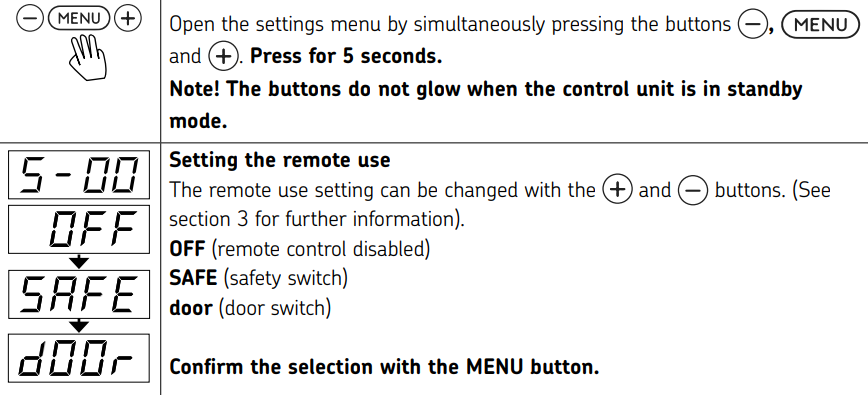

    • The control panel setting S - 00 must be in SAFE mode when using the safety switch:5-00 ENG.PNG
    •

Professional control units C170VKK and C400VKK

  • Activate REMOTE CONTROL in the control panel settings and select SAFETY SWITCH.

Troubleshooting

Remote use not working

  • The safety switch circuit is open.
  • Remote control is not activated from the control panel. Change settings.
  • The safety switch is incorrectly connected to the circuit board. Check connections.

Xenio control panel error message: SAFE

  • The safety switch circuit is open.
  • The safety switch is incorrectly connected to the circuit board. Check connections.

Xenio control panel error message: DOOR

  • The remote setting is in DOOR mode. Change setting to SAFE mode.

VKK control unit Error message: Safety switch circuit open. Check safety switch!

  • The safety switch circuit is open.
  • The safety switch is incorrectly connected to the circuit board. Check connections.
